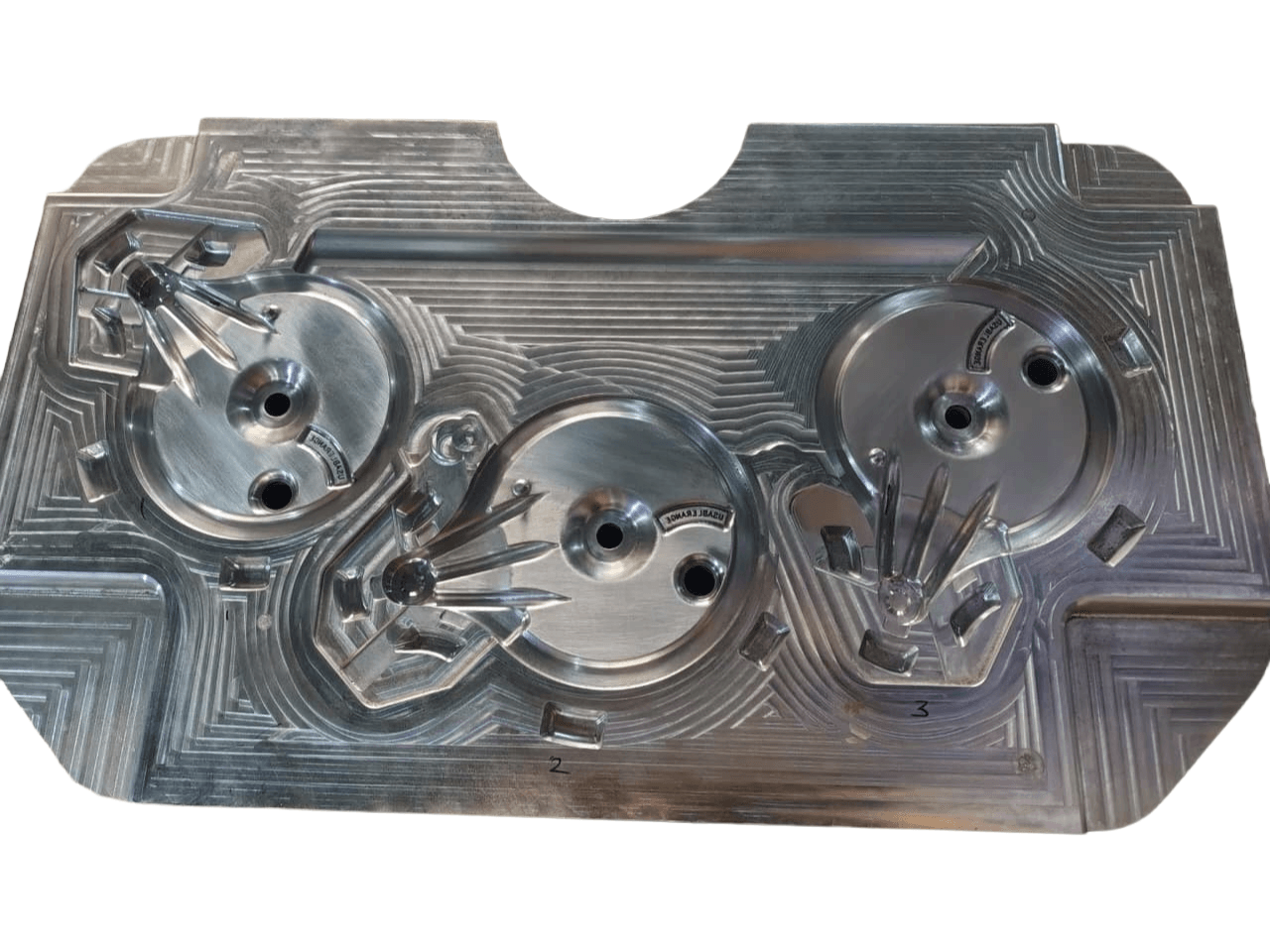

HPDC Die
HPDC Dies from Vyankatesh Engineering are designed to withstand the extreme thermal shock, high injection pressures, and rapid cycle times of modern die casting. We manufacture complete HPDC tooling focusing on optimal gating, intelligent cooling circuit layout, and precise cavity dimensions to minimize shrinkage porosity and maximize die life. Every die undergoes rigorous heat treatment, dimensional inspection, and blue matching before delivery.
Industries Served
Engineering Detail
Key Features
Manufactured from certified AISI H-13 / DIN 1.2344 for ultimate thermal fatigue resistance
Vacuum hardening produces consistent, distortion-free hardening throughout the die mass
Multiple tempering cycles develop the optimal balance of hardness and toughness
Precision-ground parting lines and cavity surfaces ensure flash-free casting
Cooling circuits engineered for directional solidification and rapid heat extraction
Manufacturing Detail
Material, Finish & Customization
Use Cases
Applications
- Engine blocks, transmission cases, and structural components
- Pump housings, valve bodies, and pressure-tight enclosures
- Complex thin-walled aluminum parts requiring rapid filling
- Multi-cavity dies for high-volume small component production
Why Choose Vyankatesh
Key Advantages
Extended die life achieved through superior steel selection and proven heat treatment
Reduced casting cycle times due to optimized thermal management
Consistent dimensional accuracy across high-volume production runs
Lower maintenance costs and reduced downtime for die repairs
Quality Standard
Quality Assurance
Every HPDC die undergoes full CMM dimensional inspection, hardness verification, and blue matching of parting lines.
Expert Answers
Frequently Asked Questions
Need Custom HPDC Die?
Share your drawing, sample, or specification and our engineering team will provide a tailored solution with competitive pricing and reliable delivery.
