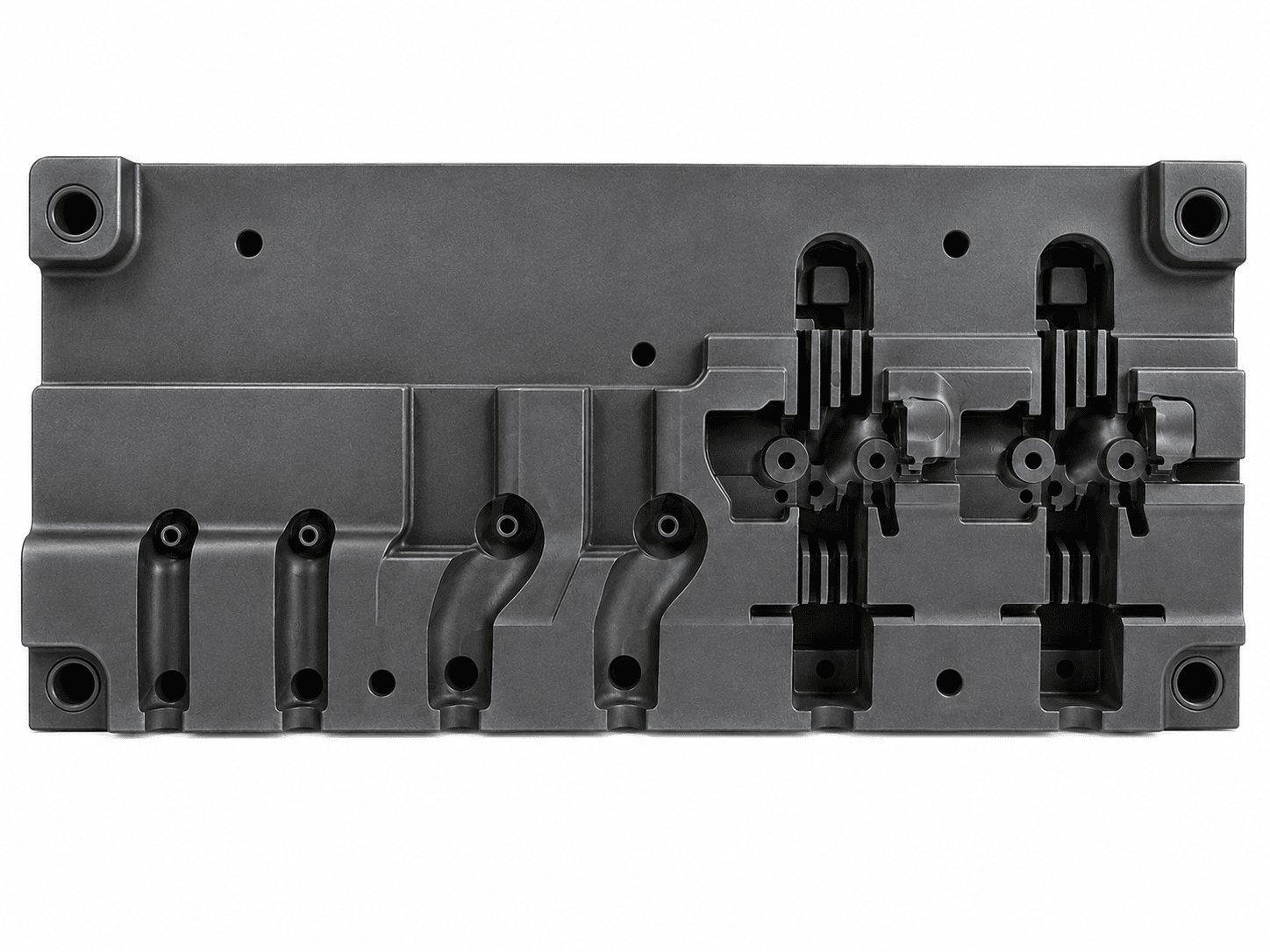

LPDC Die
Low-Pressure Die Casting (LPDC) is the process of choice for producing high-integrity, pressure-tight aluminum castings — particularly alloy wheels, cylinder heads, and structural automotive components where porosity must be minimized and mechanical properties must be maximized. Vyankatesh Engineering LPDC Dies are designed from the outset with directional solidification in mind: thermal management, gating geometry, and insert positioning are all engineered to produce dense, defect-free castings consistently over the die's service life.
Industries Served
Engineering Detail
Key Features
Designed with directional solidification as the primary engineering objective
Cooling circuit layout engineered from casting process requirements, not added as an afterthought
Gate and runner geometry sized for controlled, non-turbulent metal fill under low pressure
All die seating faces precision ground and blue matched to prevent metal flash
H-13 tool steel provides the thermal fatigue resistance needed for LPDC operating temperatures
Full die assembly and pre-acceptance inspection performed before delivery
Manufacturing Detail
Material, Finish & Customization
Use Cases
Applications
- Aluminum alloy wheel and rim manufacturing
- Automotive cylinder heads and engine mounts
- Structural chassis and suspension components
- Pressure-tight housings for hydraulic and pneumatic systems
- High-integrity parts where X-ray or pressure testing is specified
Why Choose Vyankatesh
Key Advantages
LPDC-specific design approach produces castings with better internal quality than GDC alternatives
Correct directional solidification reduces porosity, shrinkage, and scrap rates
Precision-ground parting line eliminates flash and reduces post-processing
Experienced team provides design input on gating and thermal management before manufacture begins
Quality Standard
Quality Assurance
Full assembly inspection including parting line blue matching, insert register fit check, and cooling circuit pressure test before dispatch.
Expert Answers
Frequently Asked Questions
Need Custom LPDC Die?
Share your drawing, sample, or specification and our engineering team will provide a tailored solution with competitive pricing and reliable delivery.
