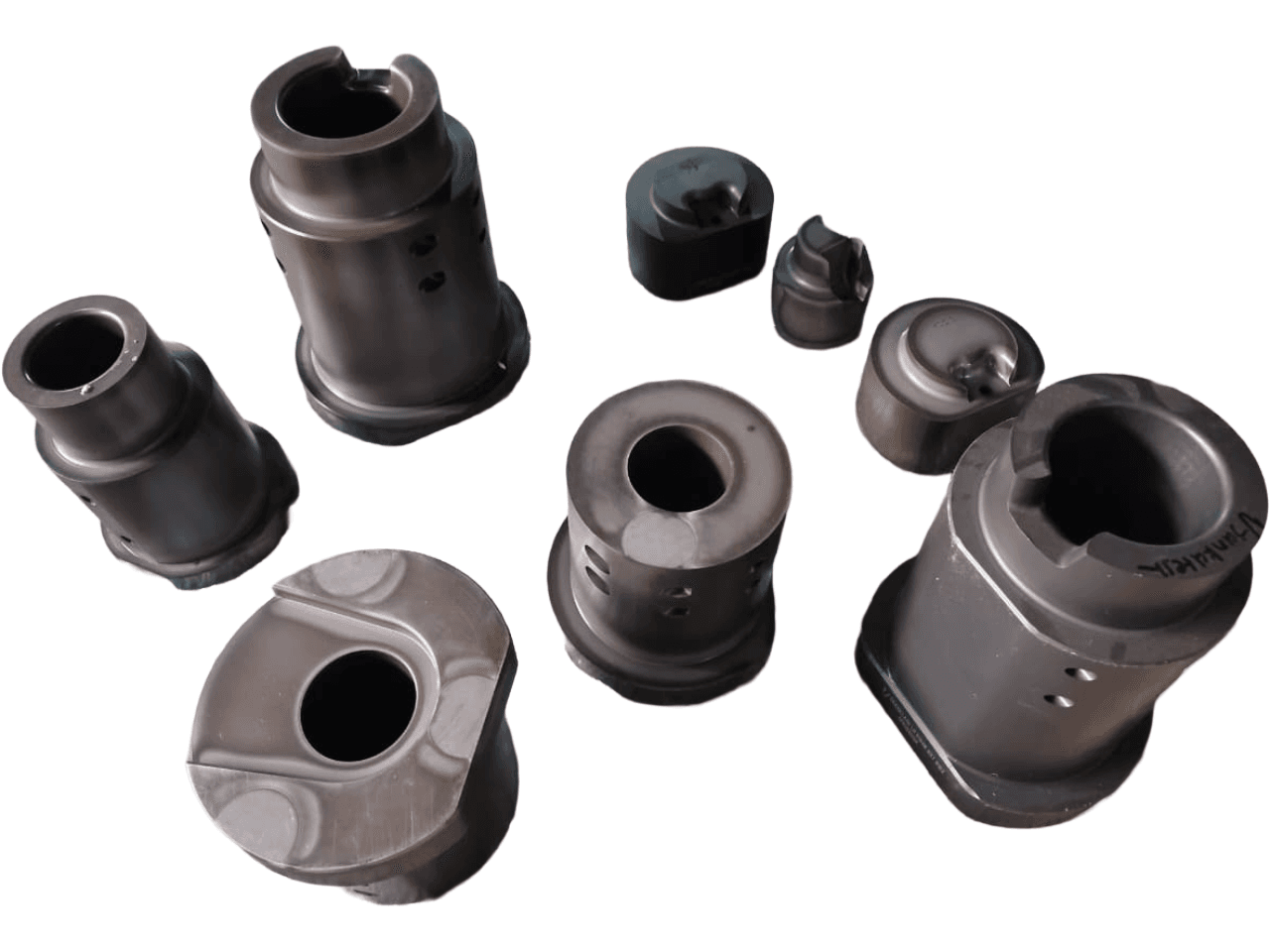

Sprue Bush & Diffuser

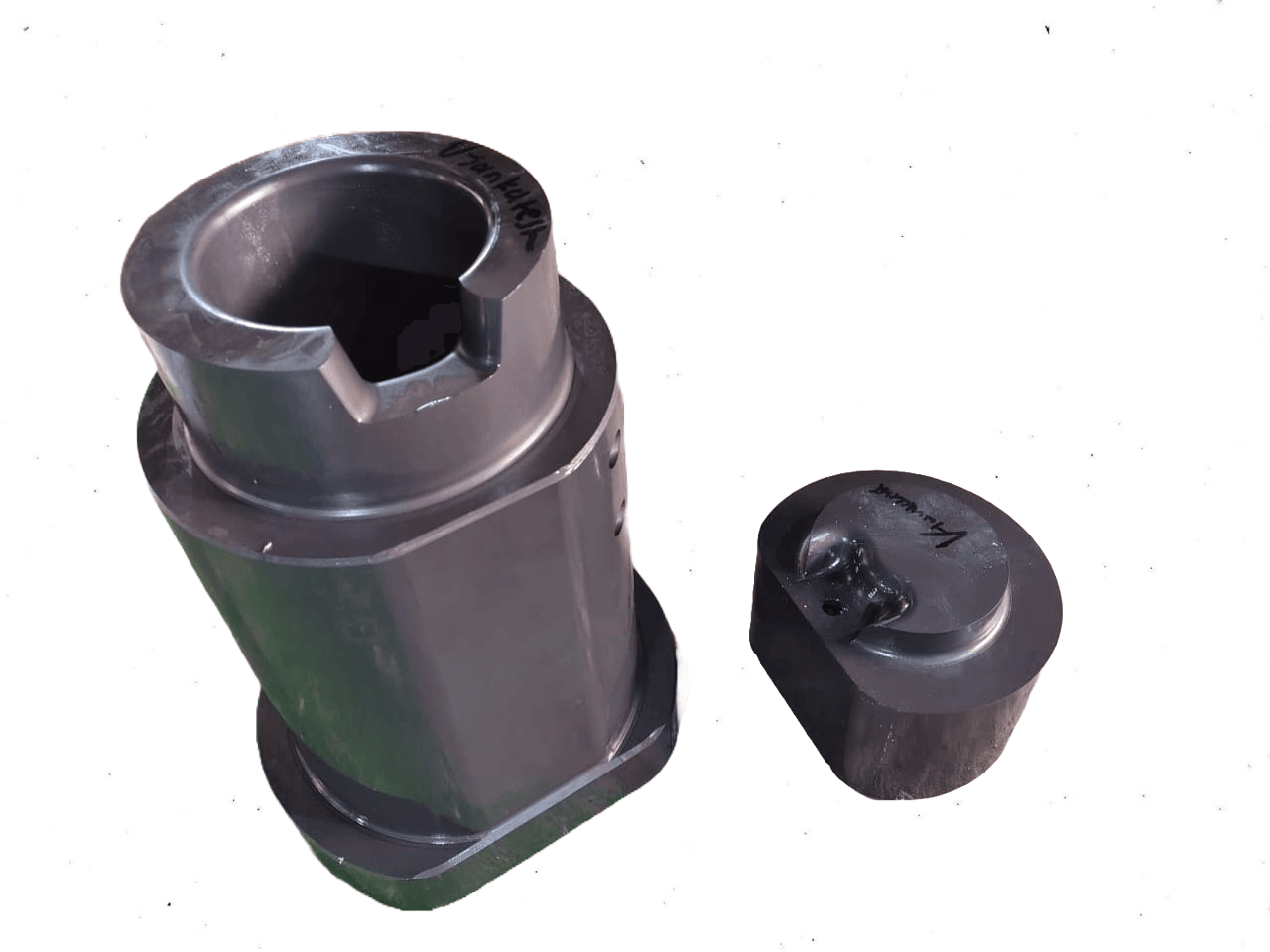

The Sprue Bush & Diffuser is a critical interface component in gravity and low-pressure die casting systems, connecting the metal delivery system to the die cavity. Vyankatesh Engineering's Sprue Bushes are manufactured from premium AISI H-13/DIN 1.2344 tool steel and undergo a full precision process — machining, hardening, grinding, and nitriding — to deliver extended service life in demanding casting environments. The matched Diffuser is ground and blue-fitted to the die with correct thermal clearances, ensuring metal flows smoothly from the pouring basin into the runner system without leakage or erosion.
Industries Served
Engineering Detail
Key Features
Manufactured from certified AISI H-13 / DIN 1.2344 for maximum thermal fatigue life
Three cooling configurations: integral bore, external water jacket, or conformal channel
Diffuser precision-ground and blue-matched to die seat for leak-free metal flow
Thermal clearances engineered into the diffuser to accommodate operating temperature expansion
Nitriding provides erosion and wear resistance in the metal contact zone
Precision bore machining ensures smooth metal flow with no turbulence-inducing surface defects
Manufacturing Detail
Material, Finish & Customization
Use Cases
Applications
- Metal entry and flow distribution in gravity die casting (GDC) systems
- Sprue interface in low-pressure die casting (LPDC) dies
- High-temperature metal delivery in ferrous and non-ferrous casting processes
- Replacement components for worn or damaged OEM sprue bushes
Why Choose Vyankatesh
Key Advantages
Thermally balanced design reduces thermal fatigue cracking — a common failure mode in standard bushes
Three cooling options allow selection of the optimal cooling method for the operating temperature
Blue-matched diffuser installation prevents metal leakage at the sprue junction
End-to-end quality management ensures dimensional control at all critical interfaces
Quality Standard
Quality Assurance
Sprue bores are inspected for concentricity, surface finish, and diameter. Diffuser blue-matching is performed and recorded before dispatch.
Expert Answers
Frequently Asked Questions
Need Custom Sprue Bush & Diffuser?
Share your drawing, sample, or specification and our engineering team will provide a tailored solution with competitive pricing and reliable delivery.
