Profile Inserts

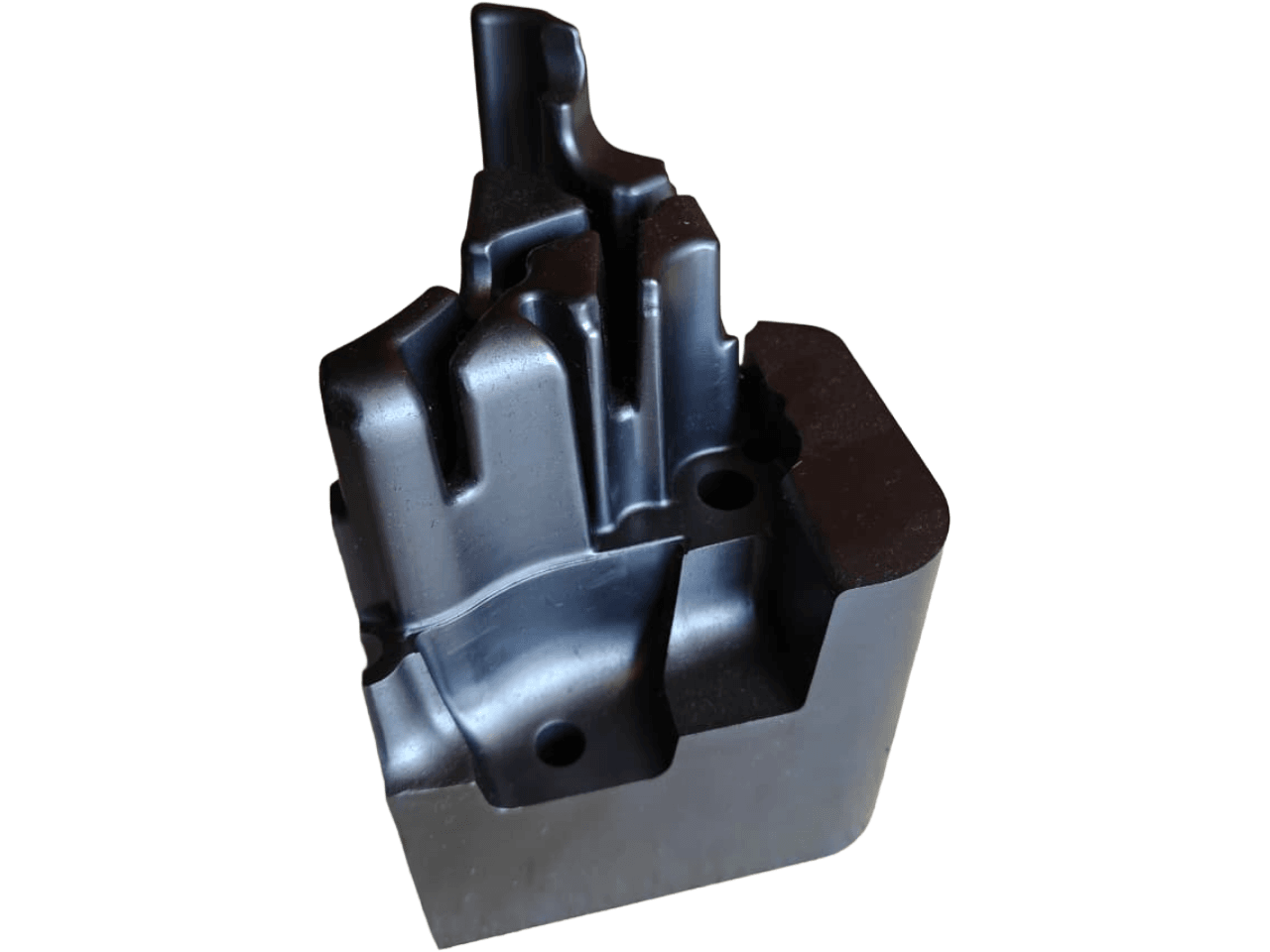

Profile Inserts from Vyankatesh Engineering are precision-machined, heat-treated replaceable components that form specific geometrical features within the die cavity. They are used in both fixed and loose-piece arrangements and allow complex or undercut geometries to be formed and extracted from the casting. Starting from certified raw material and manufacturing through our managed process — in-house machining and grinding, coupled with certified hardening and nitriding — Vyankatesh Profile Inserts deliver consistent dimensional quality and maximum die insert life.
Industries Served
Engineering Detail
Key Features
End-to-end quality management from certified raw billet — full traceability at every stage
Vacuum hardening ensures uniform hardness without distortion or surface oxidation
Double/triple tempering cycle eliminates residual stress for long fatigue life
Nitriding applied post-grinding creates surface hardness without dimensional change
Wire EDM and Sink EDM capability for complex profiles with sharp corners and fine details
Available as fixed inserts or loose-piece assemblies for undercut geometries
PVD coating applied by trusted partners with thoroughly checked results to increase wear and tear resistance and extend durability
Manufacturing Detail
Material, Finish & Customization
Use Cases
Applications
- Forming undercut features and complex cavity geometries in aluminum die castings
- Replaceable inserts for high-wear zones in HPDC and LPDC dies
- Automotive body and structural part die inserts
- Industrial housing, cover, and bracket die features
- Special loose-piece inserts for features that cannot be drawn directly from the die
Why Choose Vyankatesh
Key Advantages
Strictly managed end-to-end capability eliminates quality issues
Consistent dimensional quality batch-to-batch due to controlled, documented process
Loose-piece design enables ejection of complex, undercut castings without die damage
Competitive lead times due to dedicated in-house machining and certified heat treatment
Quality Standard
Quality Assurance
All profile inserts undergo 100% dimensional inspection by CMM or precision gauges. Hardness verified by Rockwell testing. Blue matching on VMC for critical mating surfaces.
Expert Answers
Frequently Asked Questions
Need Custom Profile Inserts?
Share your drawing, sample, or specification and our engineering team will provide a tailored solution with competitive pricing and reliable delivery.
