Casting Accessories
Precision shot sleeves, sprue bushes, side core holders, and die casting accessories engineered for reliable, long-life performance
Overview
What Are Casting Accessories?
Shot sleeves are the metal containment cylinder in cold-chamber HPDC machines through which the shot plunger injects molten metal. Sprue bushes form the metal entry point in GDC and LPDC dies, connecting the pouring basin to the runner system. Diffusers are precision-fitted to the sprue bush to distribute incoming metal. Side core holders mount and align side cores (slides) in complex dies with undercut features.
Die casting accessories — shot sleeves, sprue bushes, diffusers, and side core holders — are critical structural components that directly impact metal delivery quality, die service life, and casting cycle consistency. Vyankatesh Engineering manufactures the full range of die casting accessories from premium AISI H-13 / DIN 1.2344 tool steel, processed through the same rigorous manufacturing sequence as our die and insert products.
Why Choose Vyankatesh
Benefits
All accessories manufactured from the same certified H-13 / DIN 1.2344 used in our inserts and dies — consistent quality, same material traceability.
Shot sleeves honed to Ra ≤ 0.4μm for smooth plunger travel. Sprue bores precision-machined for clean, turbulence-free metal delivery.
Cooling configurations (integral, jacket, conformal) available for shot sleeves and sprue bushes to control metal temperature and solidification.
All die-seating faces blue-matched to confirm full contact area — preventing metal flash and leakage at mating joints.
How We Make Them
Manufacturing Process
Every casting accessorie at Vyankatesh Engineering goes through a controlled, documented manufacturing sequence from certified raw material to finished, inspected component.
Certified AISI H-13 / DIN 1.2344 billet for all critical accessories
Precision turning of bore, OD, and functional features
Full heat treatment to 44–48 HRC
Final bore finishing to specified tolerance and surface finish
Surface treatment on metal-contact surfaces for erosion resistance
Bore roundness, straightness, surface finish, and hardness verified
Our Range
Casting Accessories Products
Browse our complete range of casting accessories. Each product page contains full technical specifications, material information, applications, and FAQ.

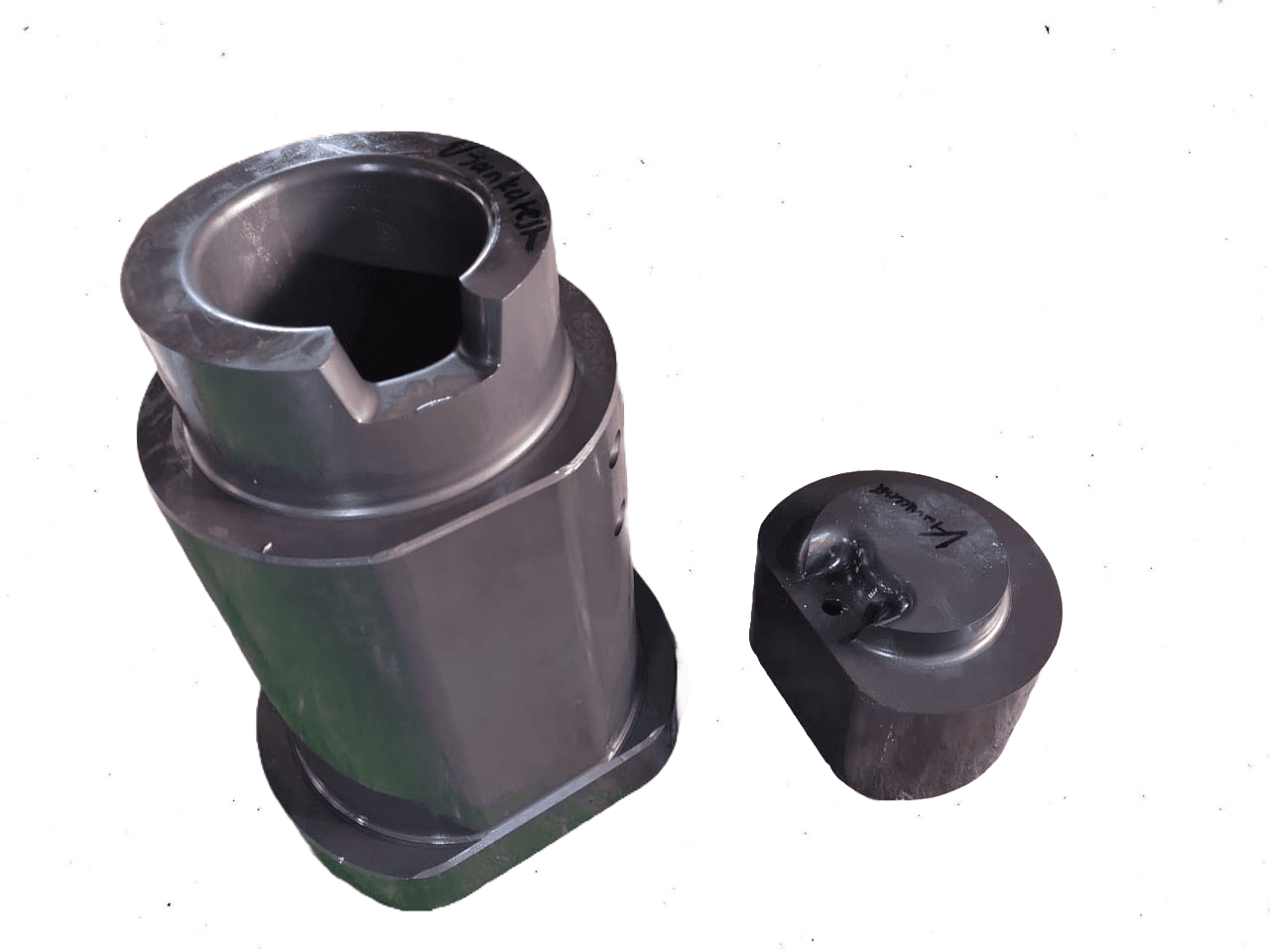

Refined material structure and heat treatment makes SPRUE BUSH & DIFFUSER more durable. High quality AISI H-13/DIN 1.2344 is precisely machined, ground, hardened & Nitrided. With options of integral/jacket/conformal cooling makes it thermally balanced. Diffuser is ground blue matched with thermal clearances.
View Specifications

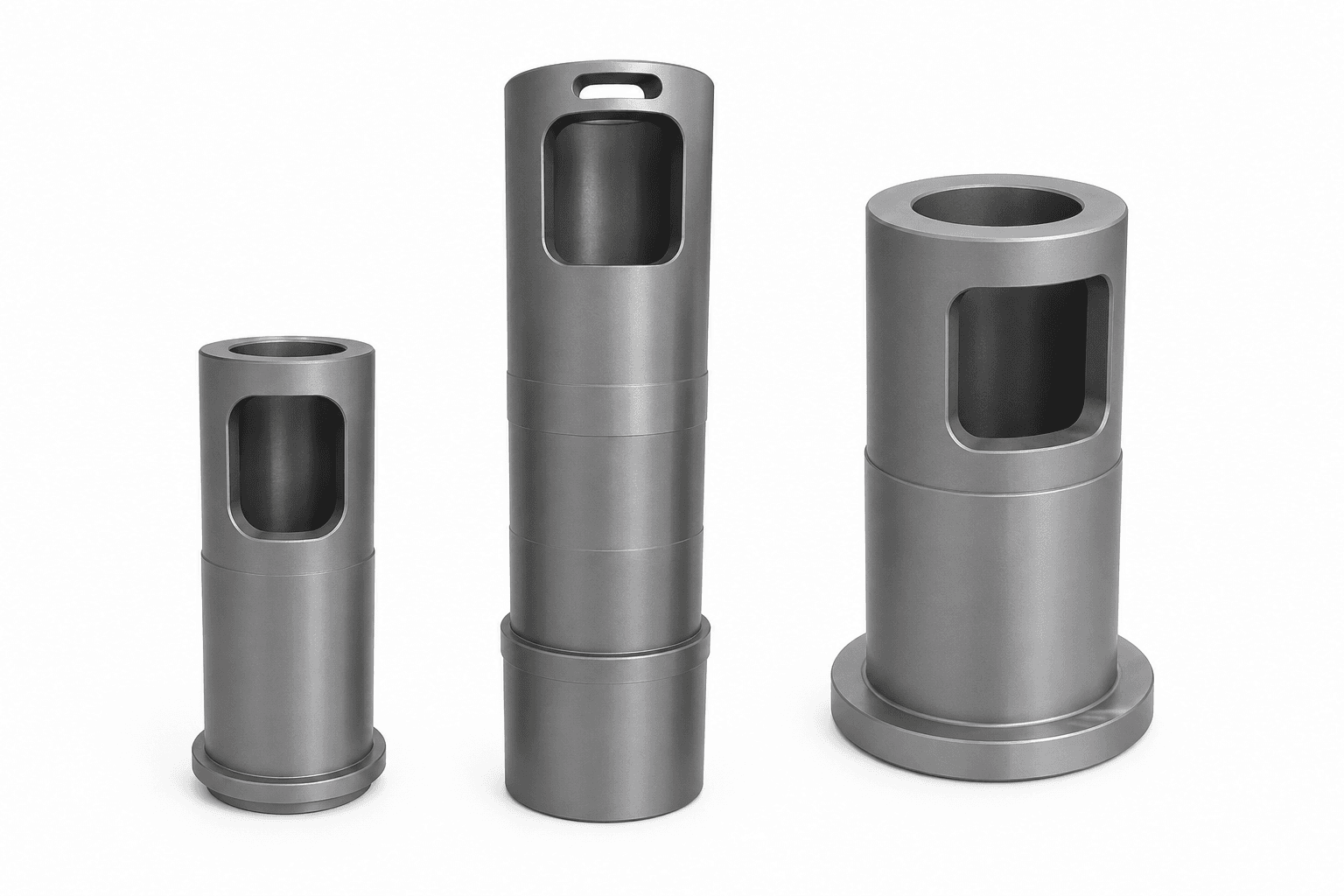

Long life VYANKATESH SHOT SLEEVES come in fully or partially cooled with one or two part options. High quality AISI H-13/DIN 1.2344 is precisely machined, ground, hardened & Nitrided. Thermally balanced sleeve improves performance and quality of casting. Continual improvements in finishes and treatment work towards giving a caster value for money.
View Specifications

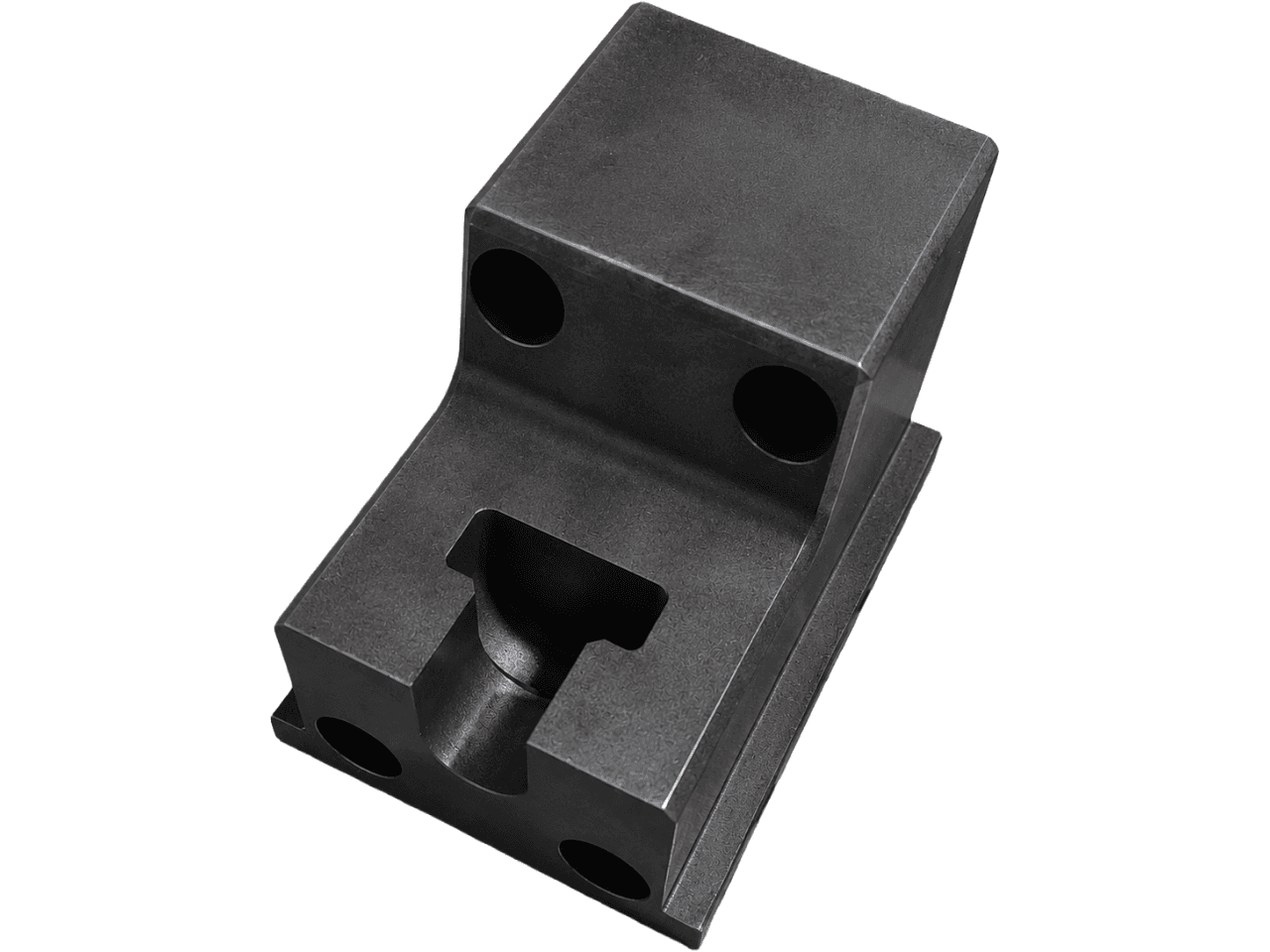

Precision machined side core holders designed for robust mounting and precise alignment of side cores in complex die casting dies. Manufactured from high-grade steel to withstand rigorous mechanical stress.
View SpecificationsBuying Guide
Selection Guide
Not sure which product is right for your application? Use this quick reference guide to identify the correct starting point.
| Product | Best For | Key Specification |
|---|---|---|
| Shot Sleeve | Cold-chamber HPDC metal injection — fully or partially cooled | H7 bore; Ra ≤ 0.4μm; 1 or 2 piece |
| Sprue Bush & Diffuser | Metal entry in GDC/LPDC — 3 cooling options | Blue-matched diffuser; H-13; nitrided bore |
| Side Core Holder | Slide/side core mounting and alignment in HPDC dies | CNC machined; all faces ground; CMM inspected |
Serving
Industries Served
Expert Answers
Frequently Asked Questions
Need Custom Casting Accessories?
Share your drawing, specification, or sample and our engineering team will provide a tailored solution with competitive pricing.
