Special Inserts

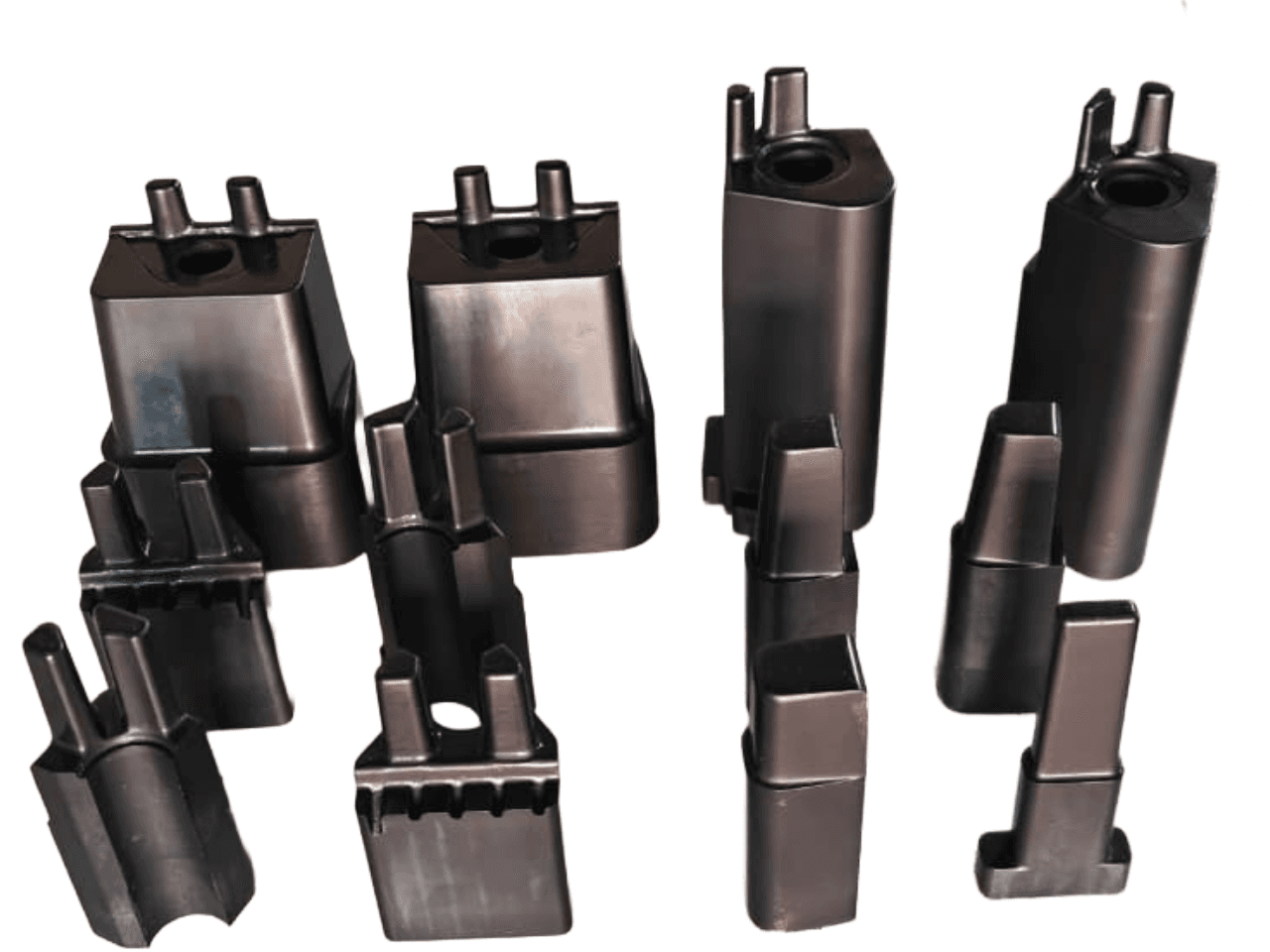

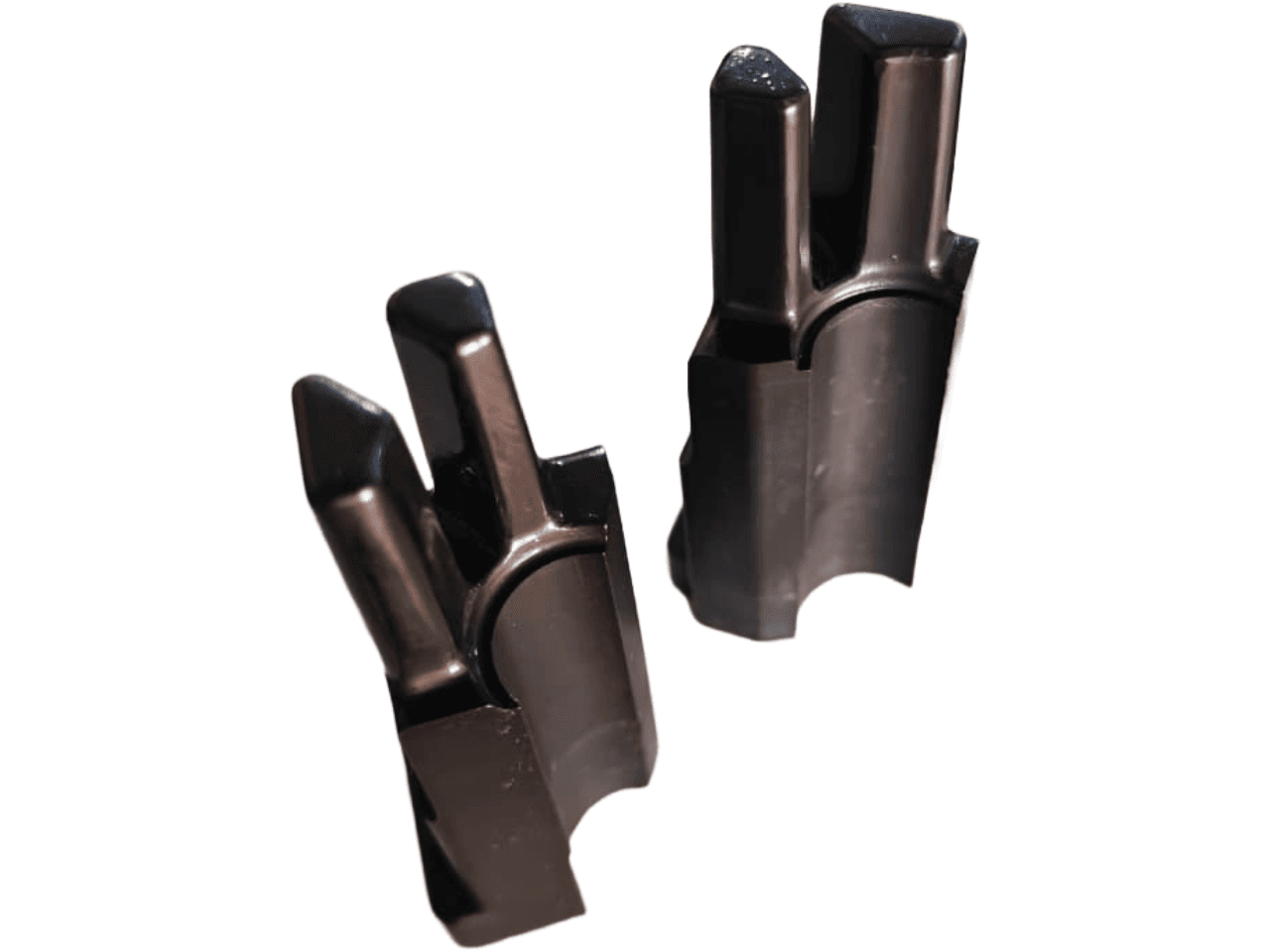

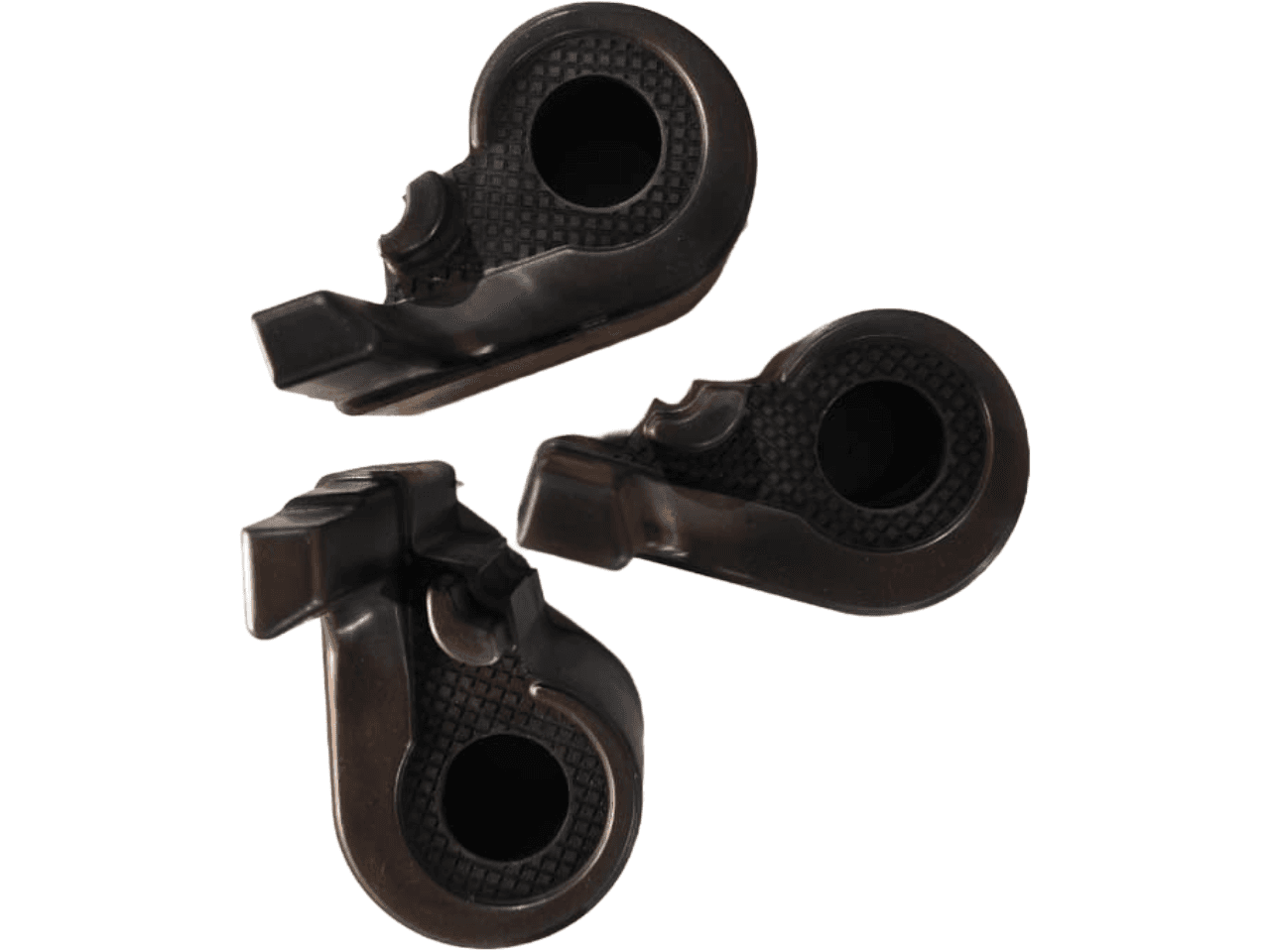

Special Inserts from Vyankatesh Engineering are application-specific, PVD-coated die inserts designed for the most demanding cavity features in high-pressure die casting (HPDC). Featuring forked prongs, stepped blocks, circular bases with knurled textures and intricate undercut profiles, these inserts form complex casting details that standard profile inserts cannot produce. Manufactured from premium AISI H-13 / DIN 1.2344 tool steel, vacuum hardened to 44–48 HRC and PVD-coated (TiN/TiAlN) for exceptional surface hardness and anti-soldering performance, each Special Insert is precision-machined and 100% inspected to deliver consistent, long-life performance in high-volume production.
Industries Served
Engineering Detail
Key Features
Manufactured from certified AISI H-13 / DIN 1.2344 for maximum thermal fatigue and soldering resistance
Vacuum hardened with controlled gas quench — uniform 44–48 HRC without distortion
PVD TiN/TiAlN coating applied for surface hardness up to 2300 HV and exceptional anti-sticking performance
Complex geometries — forked prongs, stepped blocks, circular knurled bases — machined via Wire EDM and Sink EDM
Precision ground critical faces and CMM-inspected to tight drawing tolerances
Dark PVD finish provides visual wear indication and corrosion resistance
End-to-end quality management from raw billet to finished coated insert — full traceability
Manufacturing Detail
Material, Finish & Customization
Use Cases
Applications
- Complex forked and bifurcated cavity features requiring precise prong geometry
- Stepped and multi-level inserts for housing ribs, bosses and structural reinforcements

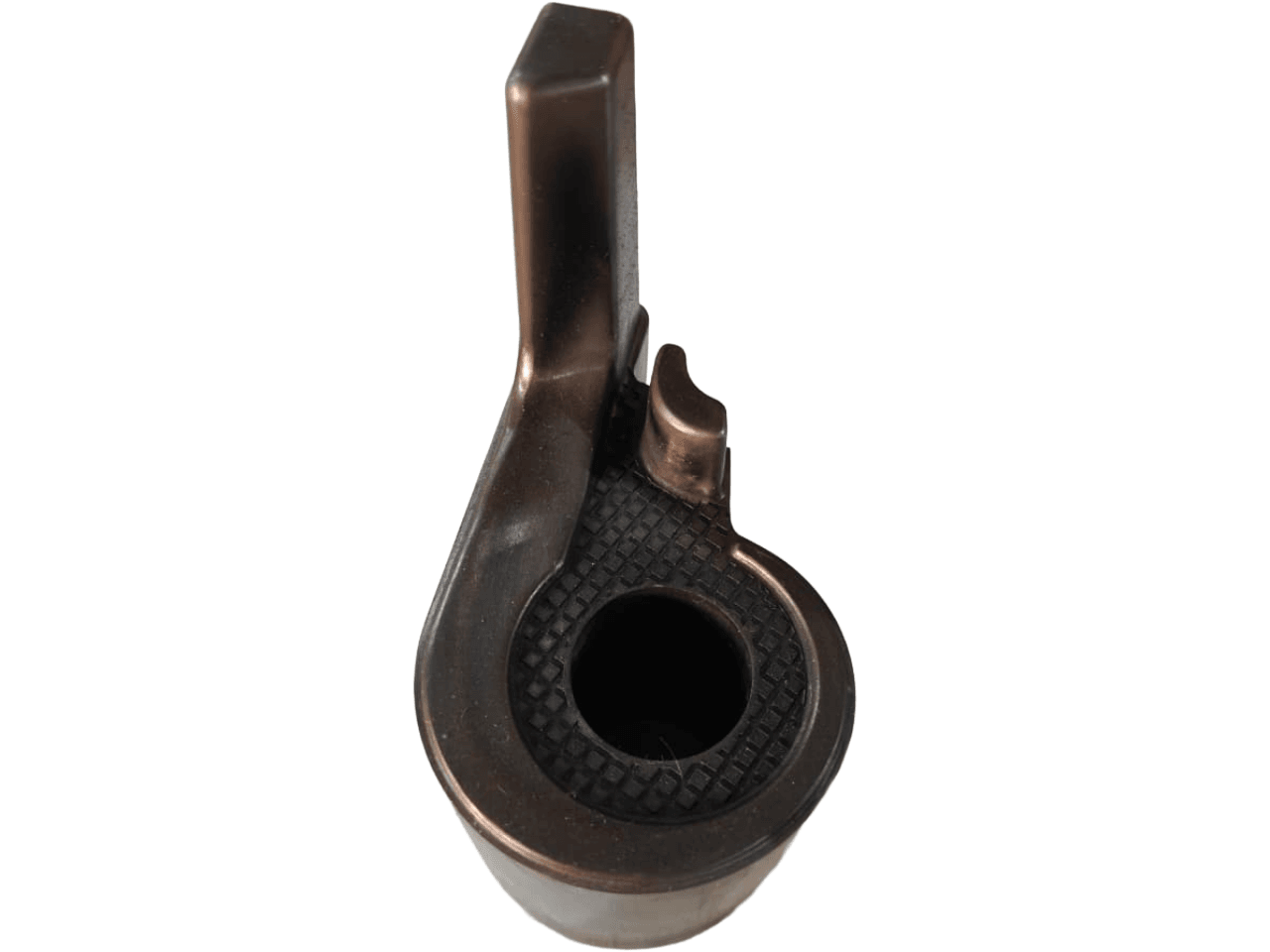

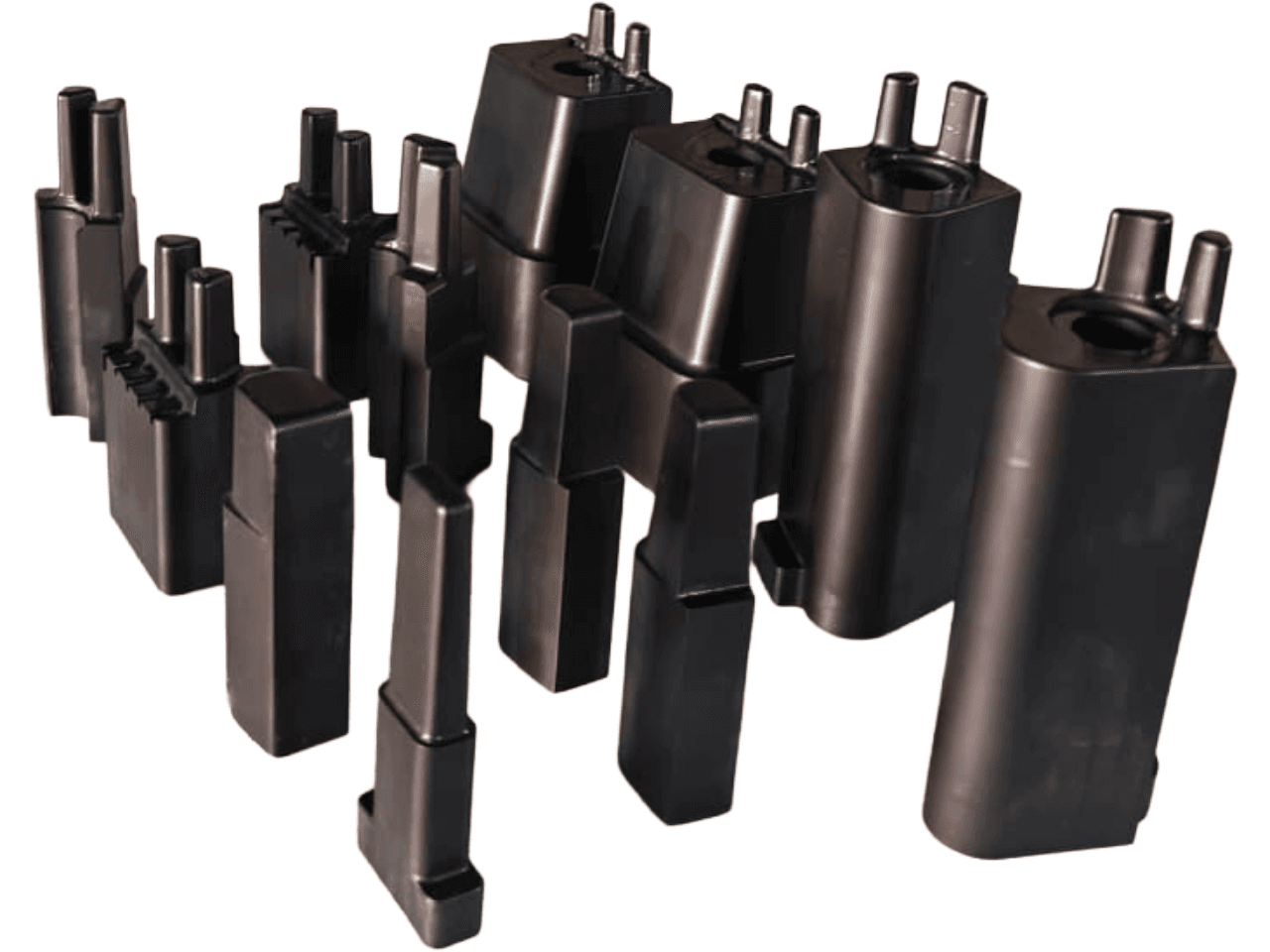

- Critical inserts with circular bases and knurled textures for anti-rotation or sealing features
- High-wear die zones where PVD coating extends insert life against soldering and erosion
- Precision HPDC dies for automotive, two-wheeler and industrial aluminum castings
Why Choose Vyankatesh
Key Advantages
Single-source special insert for geometries too complex for standard catalog tooling
PVD coating dramatically extends insert life in high-silicon aluminum alloys by preventing soldering
Complex forked and stepped forms produced in one precision component — no assembly required
Consistent batch quality due to documented CNC and EDM programs + 100% inspection
Quality Standard
Quality Assurance
Every Special Insert undergoes 100% CMM dimensional inspection, Rockwell hardness verification and visual PVD coating inspection. Critical prong geometries blue-matched where required.
Expert Answers
Frequently Asked Questions
Need Custom Special Inserts?
Share your drawing, sample, or specification and our engineering team will provide a tailored solution with competitive pricing and reliable delivery.
